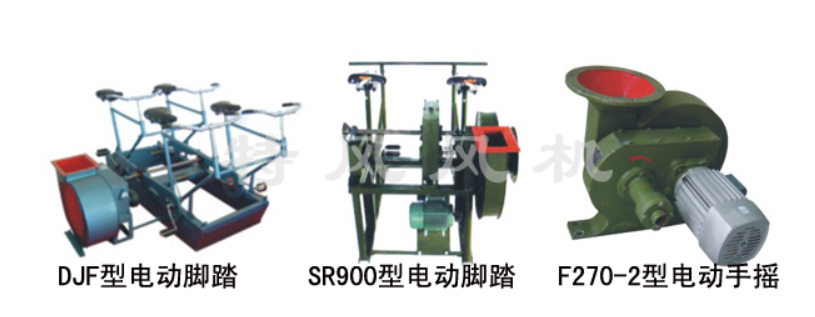

DJF-1 Type Electric-Pedal (Hand-Wheel) Dual-Function Fan
- Airflow range: 900–3,060 m³/h
- Static pressure range: 600–2,000 Pa
- Drive type: Direct drive
- Installation method: Ceiling-suspended or side-wall mounted
- Applications: Ventilation for civil air defense projects, air-raid shelters, underground hotels, restaurants, shopping malls, etc.
- 1. Dual-mode operation: Supports both electric motor operation and manual pedal-driven airflow, ensuring continued air circulation during power outages.
- 2. Specialized emergency ventilation: Designed specifically for emergency scenarios; stable ventilation is crucial for ensuring the safety of personnel inside.
- 3. Independent backup power: Operates via a manual pedal mechanism without the need for an external power supply, providing reliable emergency airflow.
Description
Product Overview
The DJF-1 Motorized & Manual Emergency Ventilation Fan is a dual-purpose ventilation solution specially designed for civil defense shelters, emergency shelters, underground facilities, and temporary ventilation applications. The fan can operate both electrically during normal conditions and manually through a pedal-driven mechanism when power is unavailable.
Developed for emergency ventilation and air circulation, the DJF-1 ensures continuous airflow in situations where electrical systems fail. Its robust design, reliable performance, and dual-operation capability make it an essential ventilation device for civil defense projects, underground shelters, basements, tunnels, storage facilities, and emergency response environments.
The fan provides effective air exchange while maintaining simple operation, making it suitable for both daily standby use and emergency situations requiring independent ventilation capability.
